Applications

  • Agricultural Tanks
  • Oil & Gas
  • Food & Beverage
  • Landscape/Irrigation
  • Many more

Notes

  • Chemical injection is an integral component of any pipeline integrity program. The petroleum, oil & gas, and water treatment industries require a variety of chemical treatments to control various undesirable contaminants and prevent asset degradation. With a variety of chemicals comes a variety of challenges to store and dispense the chemicals. The chemical tank needs to be constructed of materials compatible with the chemical and sized adequately to minimize refilling. Snyder offers a variety of tank sizes along with a variety of tank materials to ensure you have the right tank for each application.
  • High-Density Linear Polyethylene (HDLPE) and Crosslink Polyethylene (XLPE) material options available for the horizontal leg tank. Stainless Steel Tank Systems are also available.
  • Corrosion Resistant Polyethylene stands provide easy access to the bottom tank connection and have molded-in metal inserts for the optional banding and pump mounting.
  • Containment basins constructed of HDLPE (Black Color) and provide 110% containment of tank include a molded-in pump mount bracket.
  • Horizontal tanks are designed to a 1.9 specific gravity.
  • All materials are UV stabilized for long-term outdoor service.
  • Tailored tank solutions for challenging chemical injection applications: hydrate inhibitors, corrosion inhibitors/scavenger products, surfactants/cleaning/wetting products, foamers, specialty chemicals, paraffin inhibitors, defoamers/antifoams, scale control chemicals, water clarifiers, and more.

Installation and Usage Guidelines

  • CHEMICAL – Buyer, and user, if different, are solely responsible for making
    product selection and assuring chemical to be stored is suitable for the use of the product in
    the application.
  • CAPACITY – It is recommended that tanks only be filled to their rated capacity,
    not brimful capacity.
  • TEMPERATURE – Prevent excessive heat near or inside the tank. Standard
    polyethylene tanks are designed for a maximum continuous the temperature of 100°F / 37.7°C.
  • PRESSURE – Tanks are not pressure vessels and are designed for atmospheric
    pressure only.
  • VENTING – Venting equipment should be sized to limit pressure or vacuum in the
    tank to a maximum of ½” water column (0.018 psi.) Additional precautions may be required if
    the tank will be filled pneumatically (using air pressure). Failure to provide proper venting
    will void your warranty.
  • INSTALLATION – Do not rigidly pipe tanks. Flexible connections are required at
    fitting connections to maintain the warranty. Consult Snyder’s Guidelines for Use and
    Installation prior to receiving and installing tanks.

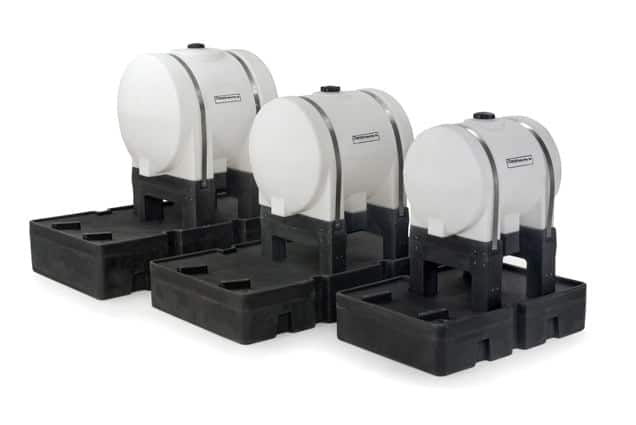

335 Gallon Industrial Chemical Injection Tank System, XLPE

  • Industrial (ASTM D1998-15) Available
  • FDA and NSF/ANSI61 Standards
  • All Materials UV Stabilized
  • HDLPE Black & Natural White

335 Gallon Industrial Chemical Injection Tank System, XLPE by Snyder Industrial.

Description

335 Gallon Industrial Chemical Injection Tank System, XLPE systems have an XLPE tank and HDLPE containment basin and stand included. Dimensions 54X85X89 made of High-Density linear polyethylene (HDLPE) meeting both FDA and NSF/ANSI 61 standards. Available in both black and natural white. Our tanks are the finest Industrial Tanks in the industry.
Line Drawing With All Standard Features Include: 335 Gallon Chemical Injection Tank

Capacity335 Gallons
Diameter54″
Height85″
Length89″
Weight338 lbs
MaterialHigh-Density Linear Polyethylene (HDLPE)
ColorNatural White or Black
FittingsSee Line Drawing
Design StandardIndustrial (ASTM D1998-15) & Commercial
Tie Down LugsNo
Specific Gravity1.9
ManufactureSnyder Industrial
CertificationsFDA 177.1520 & NSF/ANSI-61
Chemical Resistance Recommendation ChartChart

Additional Information

Additional information

Dimensions89 × 85 in
Diameter

54

Height (FT)

85

Manufacturer

Snyder

Size

335

FOB

AR

SKU 1004100N91502 Categories ,
