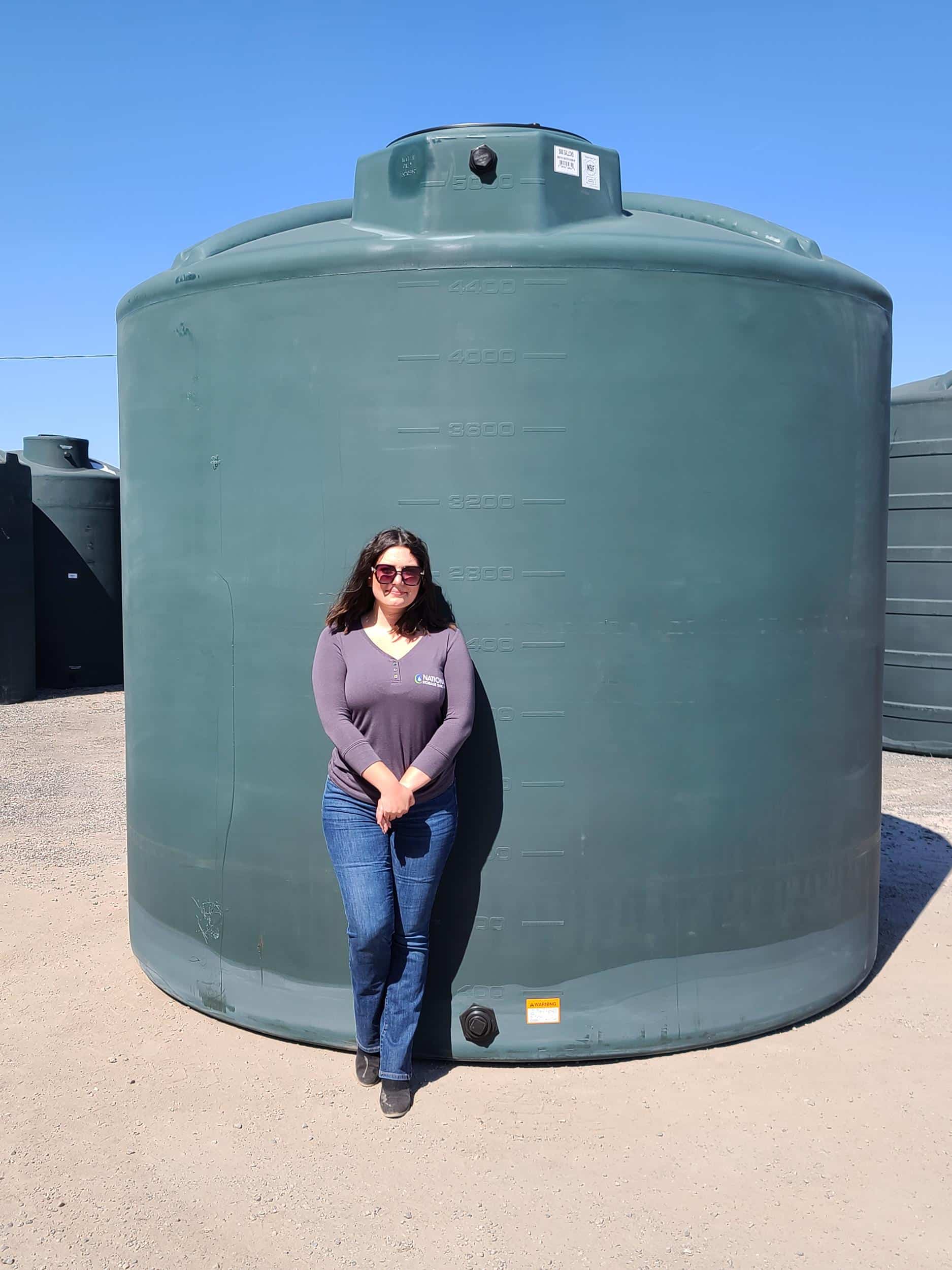

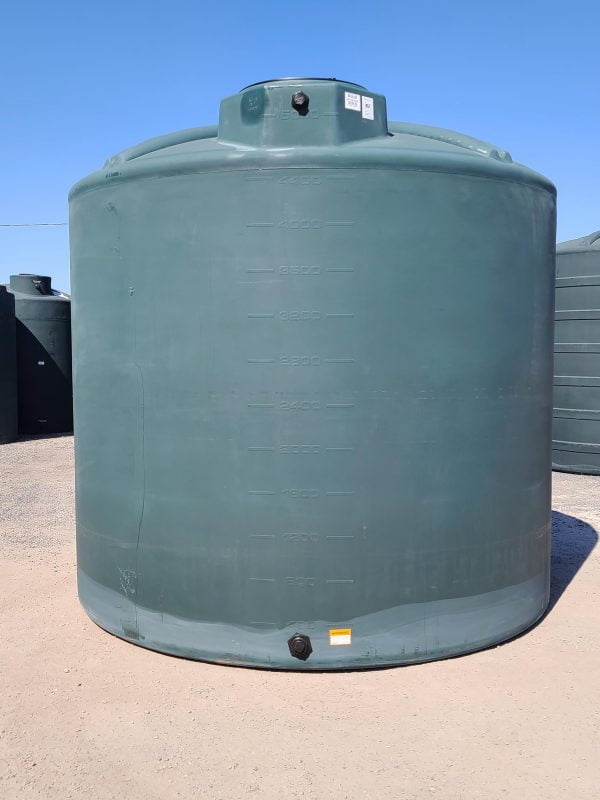

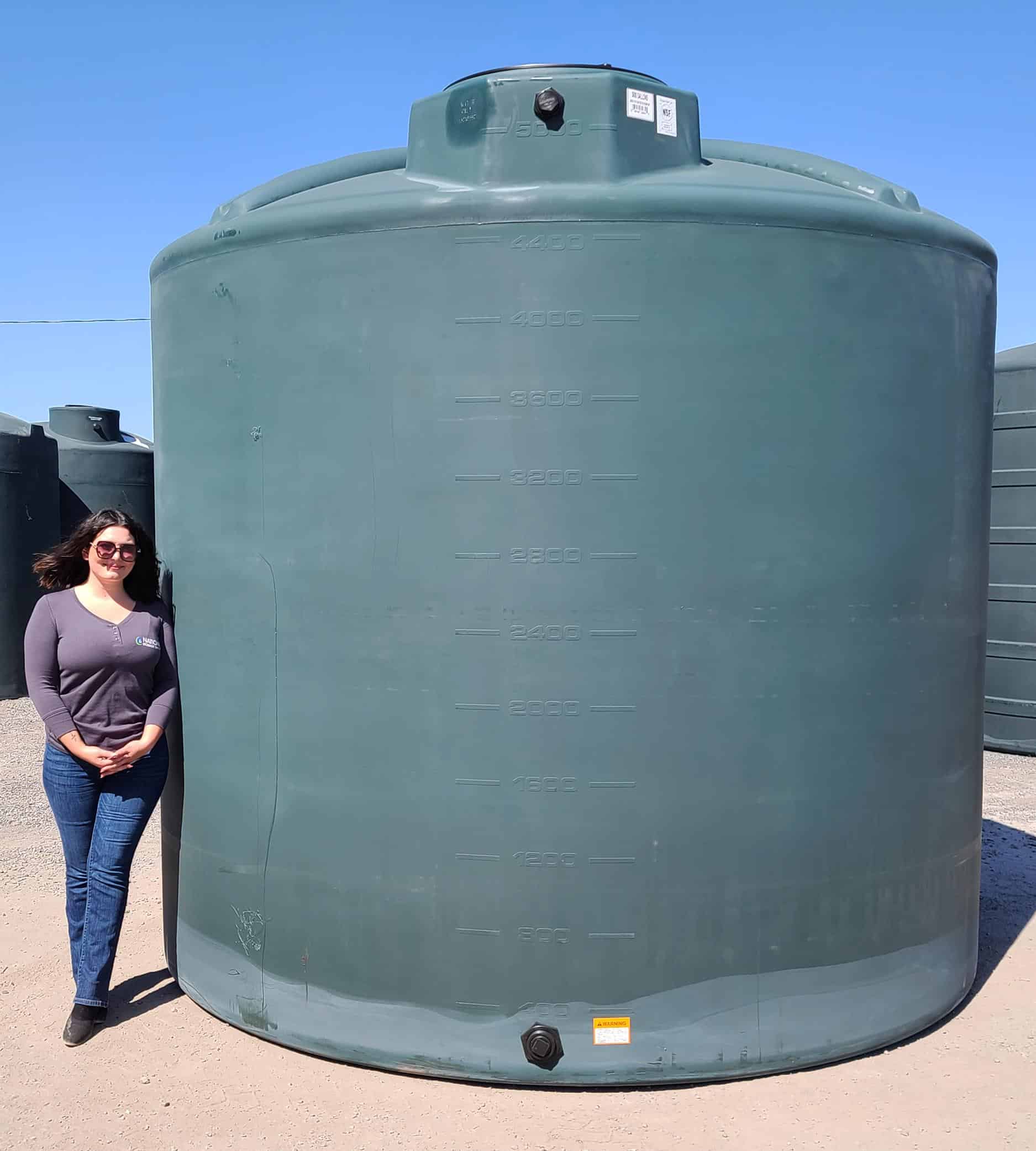

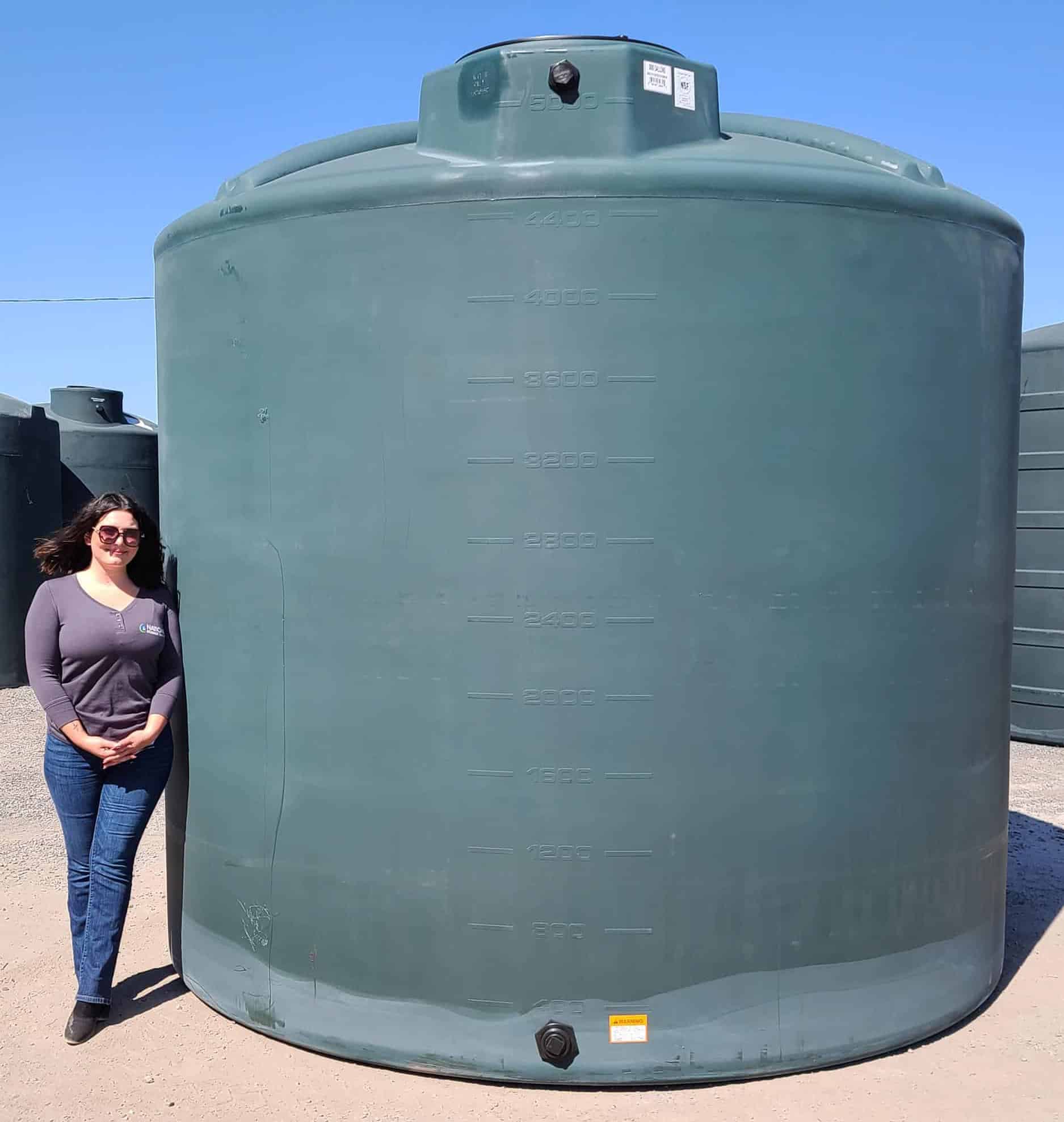

5,000 Gallon Vertical (straight-wall) Water Storage Tank 119”D x 116”H
Applications
- Above Ground Storage of Potable or Non Potable Water
- Rainwater Collection
- Fire Protection
- Landscape/Irrigation
- Many more
Notes
- All Images and Drawing are for Illustrative
- Purposes only and do not Necessarily Represent this exact product
- Dimensions may vary on polyethylene tanks by +/-3% (standard rotational molding tolerance)
- Polyethylene water tanks are designed for water storage only at atmospheric pressure only and venting equipment should be sized to limit pressure or vacuum to a maximum of 1/2" water column (0.018 PSI)
- The tank is made from Bpa free, FDA Compliant
- The resin is NSF certified manufacturing plants
- For warranty to be valid, the tank must be installed and used per manufacturer's guidelines for use and installation
- Must use flexible connectors on all fitting connections per tank manufacture's recommendations
- Bpa Free & FDA Compliant
- Quality Construction & Durable
- 3-Year Manufacturer's Warranty
- In Stock and On Sale Today
$4,770.00
Shipping Info
Ships From | CA |
---|---|
Shipping Cost | Call 866-959-7593 for Shipping Quote |
Description
5000 Gallon Vertical (straight-wall) Water Storage Tank. Tanks are available in Black, Dark Green and Sand (Tan) in sizes up to 3000 gallons, and Black and Dark Green in sizes above 3000 gallons.
Capacity | 5000 |
---|---|
Diameter | 119″ |
Apex Height | 116″ |
Weight | 1000 |
Material | High Density Polyethylene (HDPE) |
Color | Green |
Bottom Fitting | 2″ bulkhead fitting (63683) |
Top Fitting | 1-1/2″ bulkhead fitting (63931) |
Fill Opening | 26″ |
Lid Size/type | 24″ Vented Manway |
Specific Gravity | 1.0 (Water use only) |
Manufacture | Snyder |
Certifications | NSF/ANSI-61 |
Additional Information
D/W | 119 |
---|---|
H | 116 |
Manufacturer | Snyder |
Downloads
Line Drawing | 5000-119D.pdf |
---|
