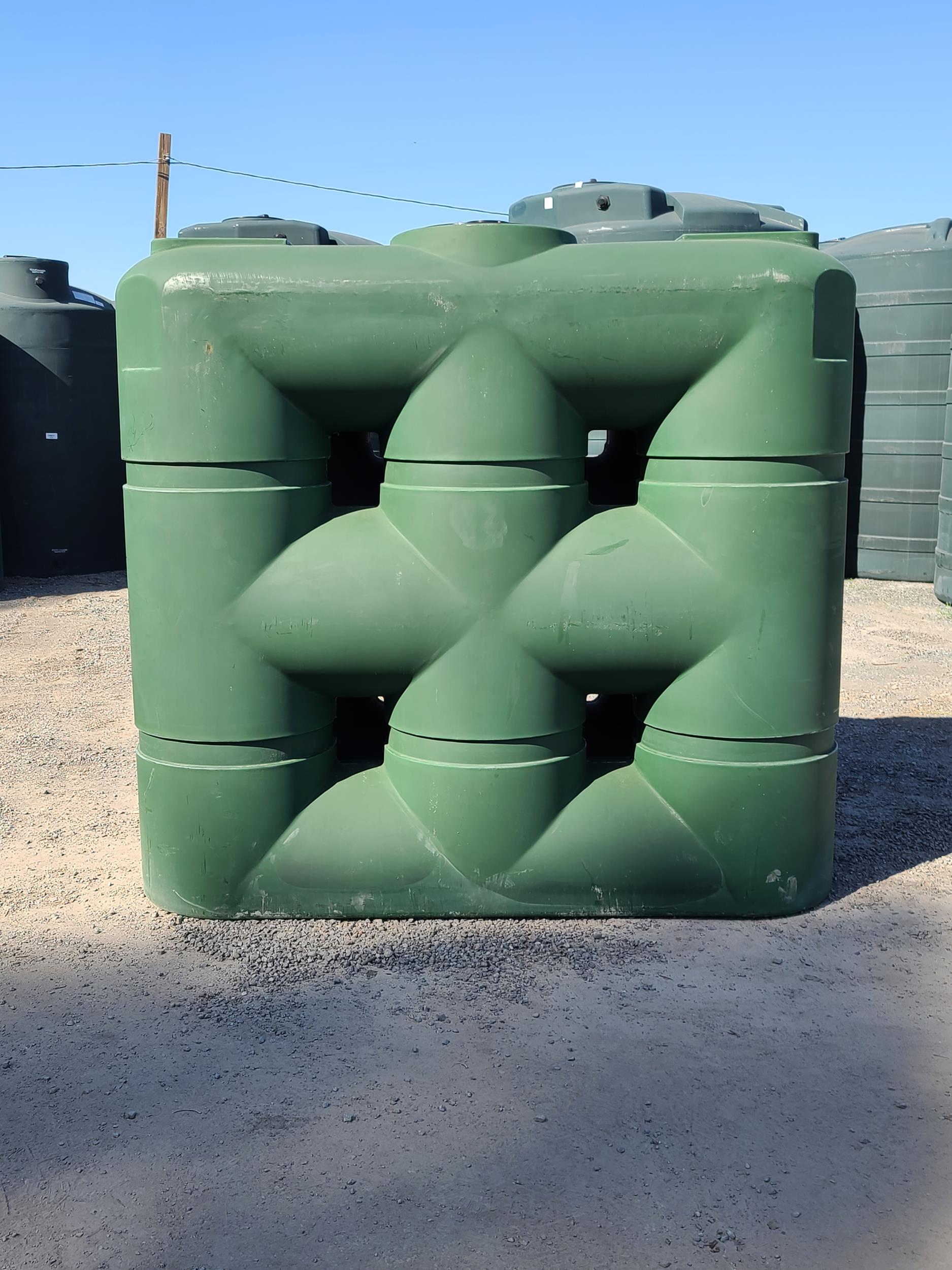

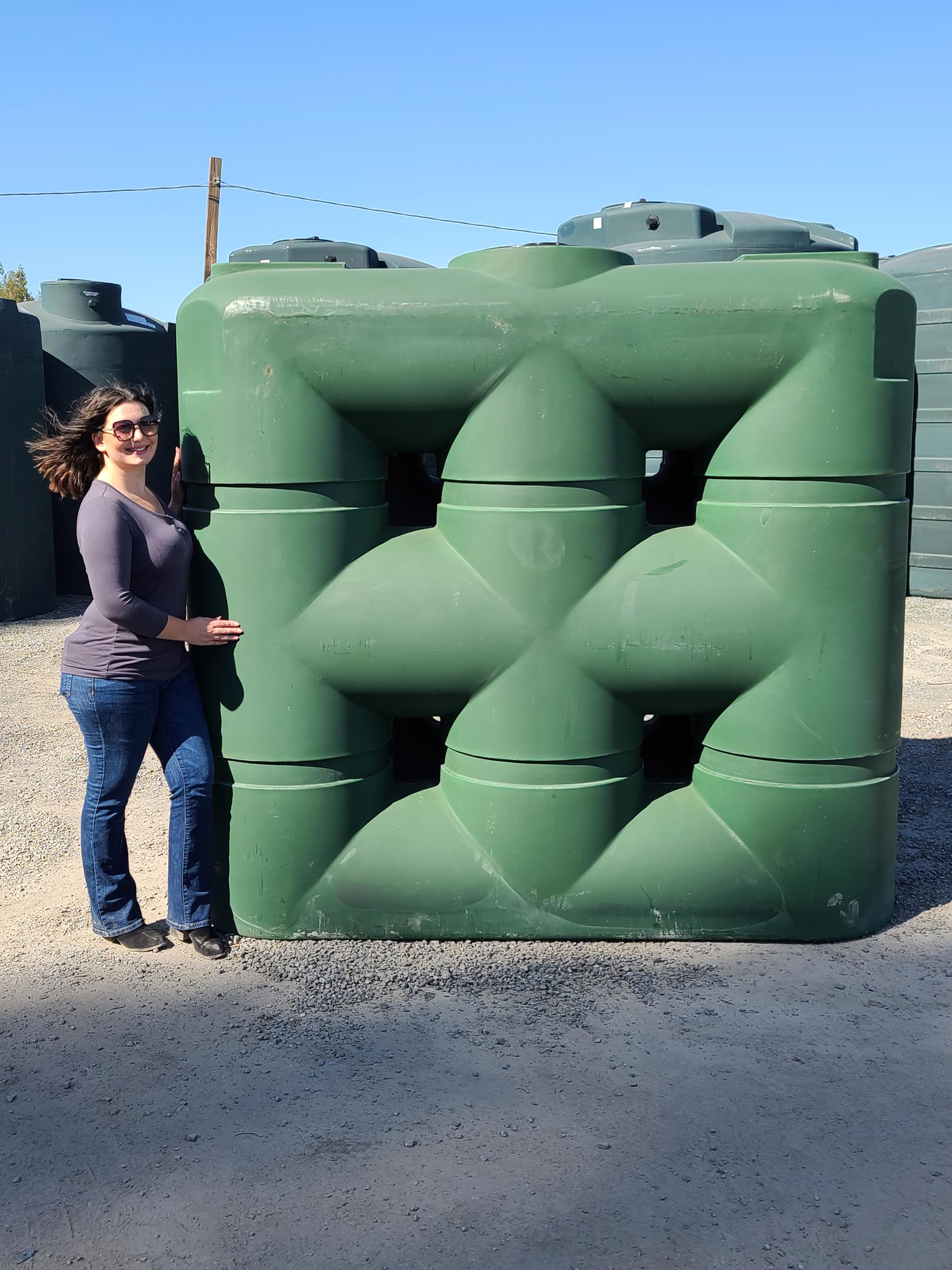

530 Gallon Rain Harvesting Slim Line Tank 25”D x 78”H x 86”L
Applications
- Above Ground Storage of Potable or Non Potable Water
- Rainwater Collection
- Fire Protection
- Landscape/Irrigation
- Many more
Notes
- All Images and Drawing are for Illustrative
- Purposes only and do not Necessarily Represent this exact product
- Dimensions may vary on polyethylene tanks by +/-3% (standard rotational molding tolerance)
- Polyethylene water tanks are designed for water storage only at atmospheric pressure only and venting equipment should be sized to limit pressure or vacuum to a maximum of 1/2" water column (0.018 PSI)
- The tank is made from Bpa free, FDA Compliant
- The resin is NSF certified manufacturing plants
- For warranty to be valid, the tank must be installed and used per manufacturer's guidelines for use and installation
- Must use flexible connectors on all fitting connections per tank manufacture's recommendations
- Bpa Free & FDA Compliant
- Quality Construction & Durable
- 3-Year Manufacturer's Warranty
- In Stock and On Sale Today
$1,620.00
Shipping Info
Ships From | UT, CA |
---|---|
Shipping Cost | Call 866-959-7593 for Shipping Quote |
Description
530 gal Green HDPE Water storage tank. Utilizes State of the art One-piece Seamless Construction For High quality storage capabilities.
Line Drawing: 530 Gallon
Capacity | 530 |
---|---|
Length/Width/Height | 86″L x 25″W x 78″H |
Apex Height | 78″ |
Weight | 200 |
Material | High Density Polyethylene (HDPE) |
Color | Green |
Bottom Fitting | 2″ Bulkhead |
Top Fitting | 2″ Bulkhead |
Lid Size/type | 16″ Vented Manway |
Specific Gravity | 1.0 (Water use only) |
Manufacture | Bushman |
Certifications | NSF/ANSI-61 |
Additional Information
D/W | 25 |
---|---|
H | 78 |
L | 86 |
Manufacturer | Bushman |
Downloads
Line Drawing | 530Gal-Slimline-RH.pdf |
---|
